Below you will find an overview of workpieces that can be ground, eroded, and lasered using a WALTER tool processing machine. This list is not exhaustive and is constantly being expanded.
Your area of application is not listed? We would be happy to clarify for you whether and with which WALTER tool grinding, tool eroding, or laser machining machine your workpiece can be machined. Please fill out the contact form for this purpose.

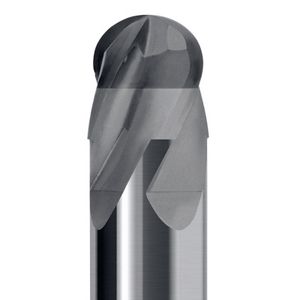

Ball Nose Mill
These cutters are used for milling grooves and as copy cutters.
The shown tool has the following specifications:
- Processing time: 06:35 [min:s]
- Material: Carbide
- Dimensions: Diameter 1 mm
Center Cutting End Mill
This cutter is used for milling deep grooves and for finishing.
The shown tool has the following specifications:
- Processing time: 14:20 [min:s]
- Material: Carbide
- Dimensions: Diameter 10 mm, Cutting edge lenght 80 mm
Conical Ball Nose Mill
These cutters are used for milling grooves and as copy cutters.
The shown tool has the following specifications:
- Processing time: 15:10 [min:s]
- Material: Carbide
- Dimensions: Diameter 16 mm
Contour Tool
These cutters are used for edge processing. As well as milling grooves.
The shown tool has the following specifications:
- Processing time: 18:30 [min:s]
- Material: Carbide
- Dimensions: Diameter 16 mm
Contour tool
These cutters are used for edge processing.
The shown tool has the following specifications:
- Processing time: 36:30 [min:s]
- Material: Carbide
- Dimensions: Diameter 16 mm
Double Radius Mill
These milling cutters are used for machining turbine blades.
The shown tool has the following specifications:
- Processing time: 13:06 [min:s]
- Material: Carbide
- Dimensions: Diameter 12 mm

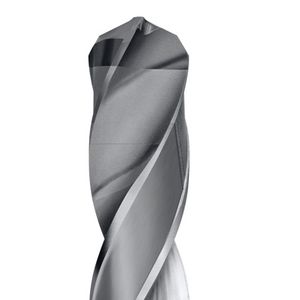

Drill Type W
Spiral drill bit type W for soft materials.
The shown tool has the following specifications:
- Processing time: 05:20 [min:s]
- Material: Carbide
- Dimensions: Diameter 10 mm
Dual cut endmill
The special combination of left-hand twist (downcut) and right-hand twist (upcut) ensures clean cut edges on both the top and bottom of the workpiece. Up & Downcut cutters are therefore particularly suitable for contour milling of wood panels coated on both sides.
The shown tool has the following specifications:
- Processing time: 13:05 [min:s]
- Material: Carbide
- Dimensions: Diameter 12 mm
Fir Tree Cutter
A fir-tree cutter is a specialized cutting tool used in machining applications to create fir-tree profiles, which are commonly found in turbine blades and disk
The shown tool has the following specifications:
- Processing time: 28:25 [min:s]
- Material: Carbide
- Dimensions: Diameter 12 mm

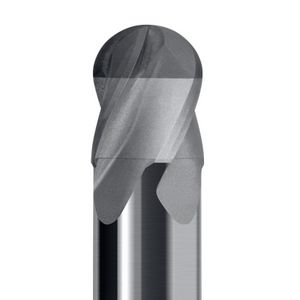

PCD ball nose mill
PCD full radius milling cutters are mainly used for the precise machining of non-ferrous metals, fiber-reinforced plastics, graphite, and other abrasive non-metals. Areas of application include the automotive industry, mold and tool making, mechanical engineering, and aerospace.
The shown tool has the following specifications:
- Processing time: 01:58 [hr:min]
- Material: Polycrystalline diamond (PCD)
- Dimensions: Diameter 6 mm
- Surface quality: Ra 0.31 µm
PCD ball nose mill
PCD full radius milling cutters are mainly used for the precise machining of non-ferrous metals, fiber-reinforced plastics, graphite, and other abrasive non-metals.Areas of application include the automotive industry, mold and tool making, mechanical engineering, and aerospace.
The shown tool has the following specifications:
- Processing time: 01:48 [hr:min]
- Material: Polycrystalline diamond (PCD)
- Dimensions: Diameter 8 mm
- Surface quality: Ra 0.25 µm

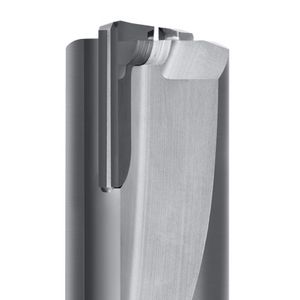

PCD compression router
Area of application: Components made of wood and fiber-reinforced materials are processed.
The shown tool has the following specifications:
- Processing time: 68:00 [min:s]
- Material: Polycrystalline diamond (PCD)
- Dimensions: Diameter 32 mm
- Surface quality: Ra 0.15 µm
PCD compression router
Area of application: Components made of wood and fiber-reinforced materials are processed
The shown tool has the following specifications:
- Processing time: 71:00 [min:s]
- Material: Polycrystalline diamond (PCD)
- Dimensions: Diameter 30 mm
- Surface quality: Ra 0.14 µm
PCD compression router
PCD Compression Router is primarily used for the precise and economical machining of non-ferrous metals, wood, plastics, and composite materials.
The shown tool has the following specifications:
- Processing time: 24:00 [min:s]
- Material: Polycrystalline diamond (PCD)
- Dimensions: Diameter 25 mm
- Surface quality: Ra 0.23 µm
PCD corner radius mill
PCD corner radius milling cutters are mainly used for machining non-ferrous metals such as aluminum and copper, as well as graphite and fiber-reinforced plastics.
The shown tool has the following specifications:
- Processing time: 01:14 [hr:min]
- Material: Polycrystalline diamond (PCD)
- Dimensions: Diameter 10 mm
- Surface quality: Ra 0.32 µm
PCD counter sink
Area of application deburring edges and countersinking holes.
The shown tool has the following specifications:
- Processing time: 18:30 [min:s]
- Material: Polycrystalline diamond (PCD)
- Dimensions: Diameter 12 mm
- Surface quality: Ra 0.09 µm

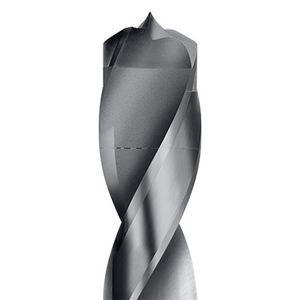

PCD drill form E
Area of application: for wood and composite materials. The advantage when drilling lies in the centering tip
The shown tool has the following specifications:
- Processing time: 01:42 [hr:min]
- Material: Polycrystalline diamond (PCD)
- Dimensions: Diameter 10 mm
- Surface quality: Ra 0.3 µm
PCD drill with chamfer
PCD drills with chamfers are primarily used in large-scale production to machine non-ferrous metals, composite materials (such as CFRP, GFRP), wood, and plastics. The chamfer at the drill tip serves to stabilize the drill entry and ensure a clean, precise start to the drilling process.
The shown tool has the following specifications:
- Processing time: 01:36 [hr:min]
- Material: Polycrystalline diamond (PCD)
- Dimensions: Diameter 8 mm
- Surface quality: Ra 0.29 µm
PCD end mill with chamfer
PCD milling cutters with chamfers are suitable for the precise machining of non-ferrous metals such as aluminum (especially with low silicium content), brass, and zinc, as well as for abrasive plastics and graphite, as the high hardness of polycrystalline diamond (PCD) enables a long service life and high surface quality at high machining speeds, which are crucial for large-scale production in industries such as the automotive and aerospace industries.
The shown tool has the following specifications:
- Processing time: 14:00 [min:s]
- Material: Polycrystalline diamond (PCD)
- Dimensions: Diameter 13 mm
- Surface quality: Ra 0.19 µm
PCD end mill with chamfer
PKD milling cutters are mainly used for machining non-ferrous metals, composite materials such as fiber-reinforced plastics and graphite, especially in cases of high wear or abrasive materials that push conventional tools to their limits.
The shown tool has the following specifications:
- Processing time: 14:00 [min:s]
- Material: Polycrystalline diamond (PCD)
- Dimensions: Diameter 10 mm
- Surface quality: Ra 0.15 µm
PCD facet drill
PCD drills are used for abrasive and difficult-to-machine materials such as aluminum alloys, fiber-reinforced plastics, graphite, and sintered materials. Advantage: long service life.
The shown tool has the following specifications:
- Processing time: 01:12 [hr:min]
- Material: Polycrystalline diamond (PCD)
- Dimensions: Diameter 6.35 mm
- Surface quality: Ra 0.33 µm

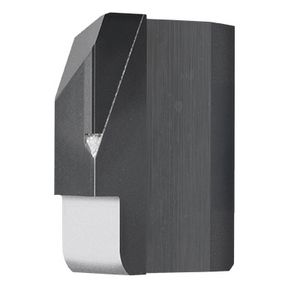

PCD profile insert
Area of application: Face milling; profile plates are inserted into a milling holder.
The shown tool has the following specifications:
- Processing time: 13:00 [min:s]
- Material: Polycrystalline diamond (PCD)
- Dimensions: Diameter 13 mm
- Surface quality: Ra 0.05 µm
PCD profile tool
These cutters are used for edge processing. Area of application in cell phone manufacturing
The shown tool has the following specifications:
- Processing time: 01:28 [hr:min]
- Material: Polycrystalline diamond (PCD)
- Dimensions: Diameter 32 mm
- Surface quality: Ra 0.12 µm
PCD profile tool
These cutters are used for edge processing.
The shown tool has the following specifications:
- Processing time: 01:48 [hr:min]
- Material: Polycrystalline diamond (PCD)
- Dimensions: Diameter 20 mm
- Surface quality: Ra 0.10 µm
PCD profile tool
These cutters are used for edge processing.
The shown tool has the following specifications:
- Processing time: 16:00 [min:s]
- Material: Polycrystalline diamond (PCD)
- Dimensions: Diameter 18 mm
- Surface quality: Ra 0.12 µm
PCD profile tool
These cutters are used for edge processing.
The shown tool has the following specifications:
- Processing time: 24:30 [min:s]
- Material: Polycrystalline diamond (PCD)
- Dimensions: Diameter 12 mm
- Surface quality: Ra 0.11 µm

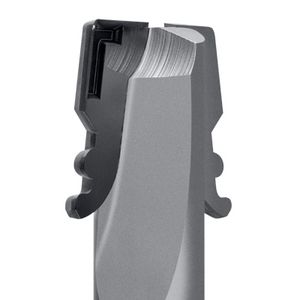

PCD profile tool with chip breaker
Area of application: Components made of fiber-reinforced materials are processed
The shown tool has the following specifications:
- Processing time: 14:30 [min:s]
- Material: Polycrystalline diamond (PCD)
- Dimensions: Diameter 12 mm
- Surface quality: Ra 0.09 µm
PCD profile tool with chip breaker
These cutters are used for edge processing. Area of application: for milling long-chipping materials.
The shown tool has the following specifications:
- Processing time: 13:00 [min:s]
- Material: Polycrystalline diamond (PCD)
- Dimensions: Diameter 13 mm
- Surface quality: Ra 0.11 µm

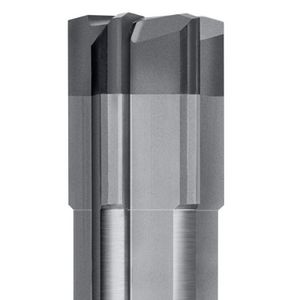

PCD reamer
PCD reamers are used in areas where maximum precision and surface quality are required, especially when machining non-ferrous metals such as aluminum (including those with high silicon content), magnesium, and titanium, as well as plastics and composite materials.
The shown tool has the following specifications:
- Processing time: 01:28 [hr:min]
- Material: Polycrystalline diamond (PCD)
- Dimensions: Diameter 8 mm
- Surface quality: Ra 0.32 µm
Reamer
With the help of reamers, pre-drilled holes can be reworked with high precision and thus reamed to the desired nominal size.
The shown tool has the following specifications:
- Processing time: 03:14 [min:s]
- Material: Carbide
- Dimensions: Diameter 6 mm
Thread Milling Cutter
Thread milling cutter for ISO threads. This is used for milling internal threads.
The shown tool has the following specifications:
- Processing time: 12:05 [min:s]
- Material: Carbide
- Dimensions: Diameter 8 mm
