CNC measuring machines are now an integral part of tool production and guarantee that the process can be kept stable. For this purpose , the highest possible precision in the measurement process is an absolute priority.
WALTER offers high-quality precision measuring machines for a wide range of applications: Both through-light and light measurements are carried out independently of the user, CNC-controlled and precise. Thus, the production process of high-quality cutting tools can be monitored at any time by a neutral measuring device.

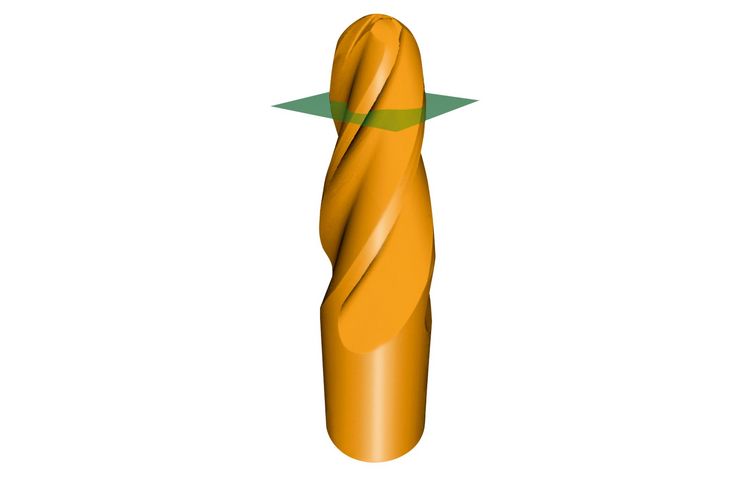

A whole new technology is scanning tools and comparing the scan to a target model from the customer's CAD/CAM system. With the 3D scanning process , WALTER offers its customers a technology that allows tools and workpieces to be scanned very quickly and easily, capturing them in all their geometry.
The HELICHECK 3D precision measuring machine allows you to scan tools and production parts and then generate a 3D model.
The optical CNC measuring machines HELICHECK ADVANCED measures complex geometries on rotationally symmetrical tools with a repeatability of 1.5 μ.

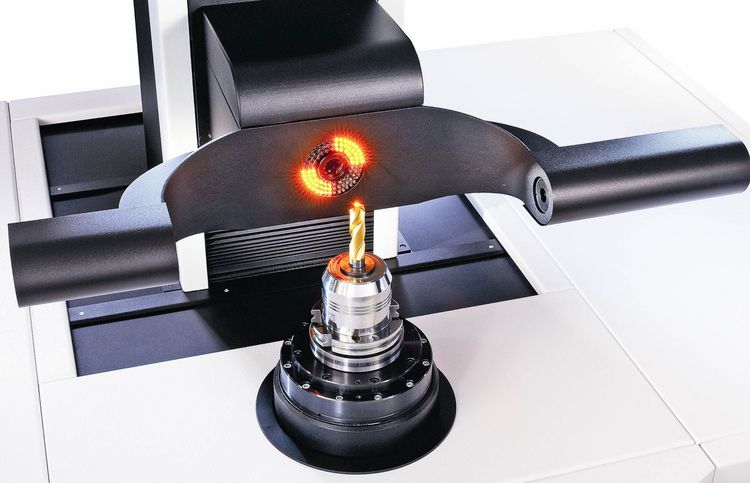

The HELICHECK PRECISION CNC measuring machine operates with a backlit camera to measure a tool's complete external contours. HELICHECK PRECISION can measure complex geometries of rotation-symmetrical components or grinding wheels and diamond dressing rolls.
The fully automatic HELICHECK PRO measuring machine can be used universally. It can measure tools with a diameter of 1 to 150 mm. Maximum tool length up to 330 mm is possible. With HELICHECK PRO, you can easily and comfortably monitor your production process.
HELICHECK PLUS is the universally used measuring machine for both micro-tools and tools in the standard range. Measurements for transmitted light and incident light are performed by the HELICHECK PLUS operator-independent, CNC-controlled and μ-precise.
HELICHECK PRO LONG
The fully automatic HELICHECK PRO LONG measuring machine is used in the macro area. It measures tools with a diameter of 1 to 150 mm in the macro area with a tool length up to 730 mm and a tool weight up to 25 kg.
HELICHECK PLUS LONG
The fully automatic HELICHECK PLUS LONG measuring machine can measures tools in the micro-range.
